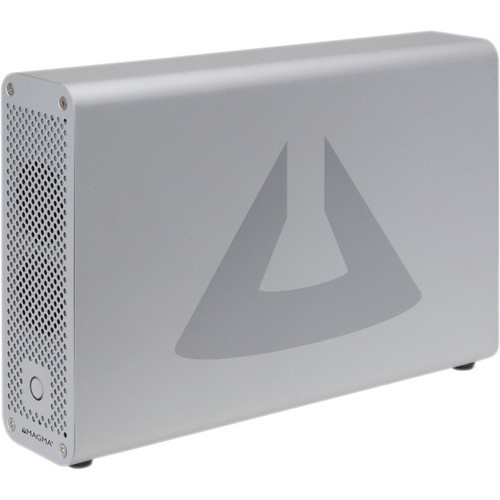

Magma ExpressBox 1T 1-Slot Thunderbolt 2 to PCIe Expansion Chassis

Magma

$499.99
(No reviews yet) Write a Review
SKU:
MAMEB1T
Adding to cart… The item has been added

The ExpressBox 1T 1-Slot Thunderbolt 2 to PCIe Expansion Chassis from Magma enables you to use PCIe cards with a Thunderbolt 2-equipped computer. It supports one half-length/full-height PCIe card and transfers data at speeds up to 20 Gb/s over a single cable via Thunderbolt 2 technology twice the speed of Thunderbolt 1. The chassis also supports plug and play installation. It features quiet ventilated cooling with two user-controlled fans, allowing you to manually adjust fan speed and noise level based on your working environment needs.



This expansion chassis has a 7.75" card slot. The chassis gives your Mac or Windows PC the power to achieve maximum performance with any compatible half-length PCIe card. Add a PCIe card to this chassis and turn your Mac or Windows PC into a powerful workstation capable of HD video capture and editing, media transcoding, audio processing, data processing, or high-speed storage and networks. You can daisy chain up to six Thunderbolt 2 devices. Connect this chassis to high resolution displays such as DisplayPort, mini DisplayPort, HDMI, and VGA monitors.

Plug and Play
This expansion chassis offers plug and play installation. Open the chassis with two thumbscrews; no tools required. The card carriage slides out, providing quick access to the PCIe slot. It supports any compatible PCIe x1, x4, x8, or x16 card.
System Cooling
It features quiet ventilated cooling with two user-controlled fans, allowing you to adjust fan speed and noise level with a potentiometer based on your working environment needs.
Heavy-Duty Extruded Aluminum Enclosure
This portable chassis protects your PCIe cards in a heavy-duty enclosure. The extruded aluminum shell provides a strong, protective housing while also eliminating heat from the cards inside.



Additional Features

Attach a PCIe card to Thunderbolt 2 equipped mobiles and all-in-one computers
Transfer data at up to 20 Gb/s that is 2 times faster than Thunderbolt 1
Daisy-chain up to six Thunderbolt 2 devices
Use a compatible half-length PCIe card for HD video capture, audio interface, SAS/SATA HBA10 Gigabit Ethernet, 8Gb Fibre Channel, SSD data transfer, and more
Connect this chassis to high-resolution displays such as DisplayPort, mini-DisplayPort, HDMI, and VGA monitors
General Expansion Slots 1 x PCIe 2.0 x16 (x4 mode) Maximum GPU Length 7.75" / 19.7 cm Ports 2 x Mini DisplayPort Thunderbolt 2 Data Transfer Rates Thunderbolt 2: 20 Gb/s Operating System Support Windows, macOS/OS X Power Power Source Type 65 W External Adapter AC Input Power 100 to 240 VAC, 50 / 60 Hz Cooling Fans 2 Environmental Operating Temperature 32 to 122°F / 0 to 50°C Storage Temperature -4 to 140°F / -20 to 60°C Operating Humidity 5 to 85% Physical Construction Material Aluminum Certifications CE, FCC, RoHS, as per Manufacturer Dimensions 9.5 x 2.3 x 6.9" / 24.1 x 5.8 x 17.5 cm Weight 3 lb / 1.3 kg Packaging Info Package Weight 5.7 lb Box Dimensions (LxWxH) 15.4 x 10.6 x 6.3"
